VEVOR Pro Leg Stretcher 220LBS Leg Stretch MachineLaserEngraverRotaryAxis80mm3Jaw

€148,74

SPECIFICATIONS

Brand Name: VEVOR

Certification: CE

High-concerned chemical: None

Origin: Mainland China

Power Source: USB

Voltage: ＜20V

Warranty: We will provide a one-year warranty and solve all your after-sales problems!

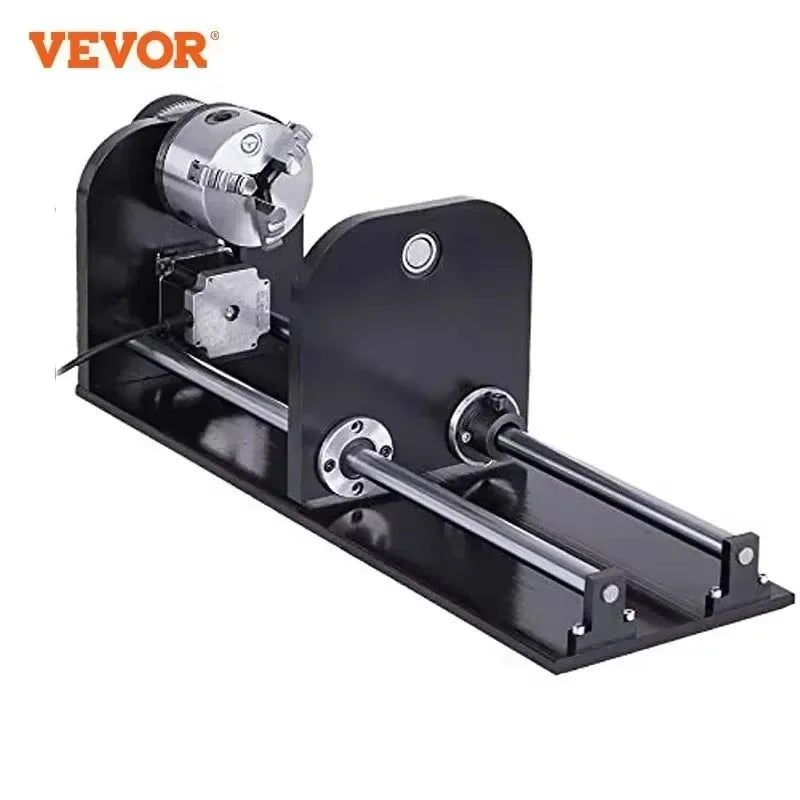

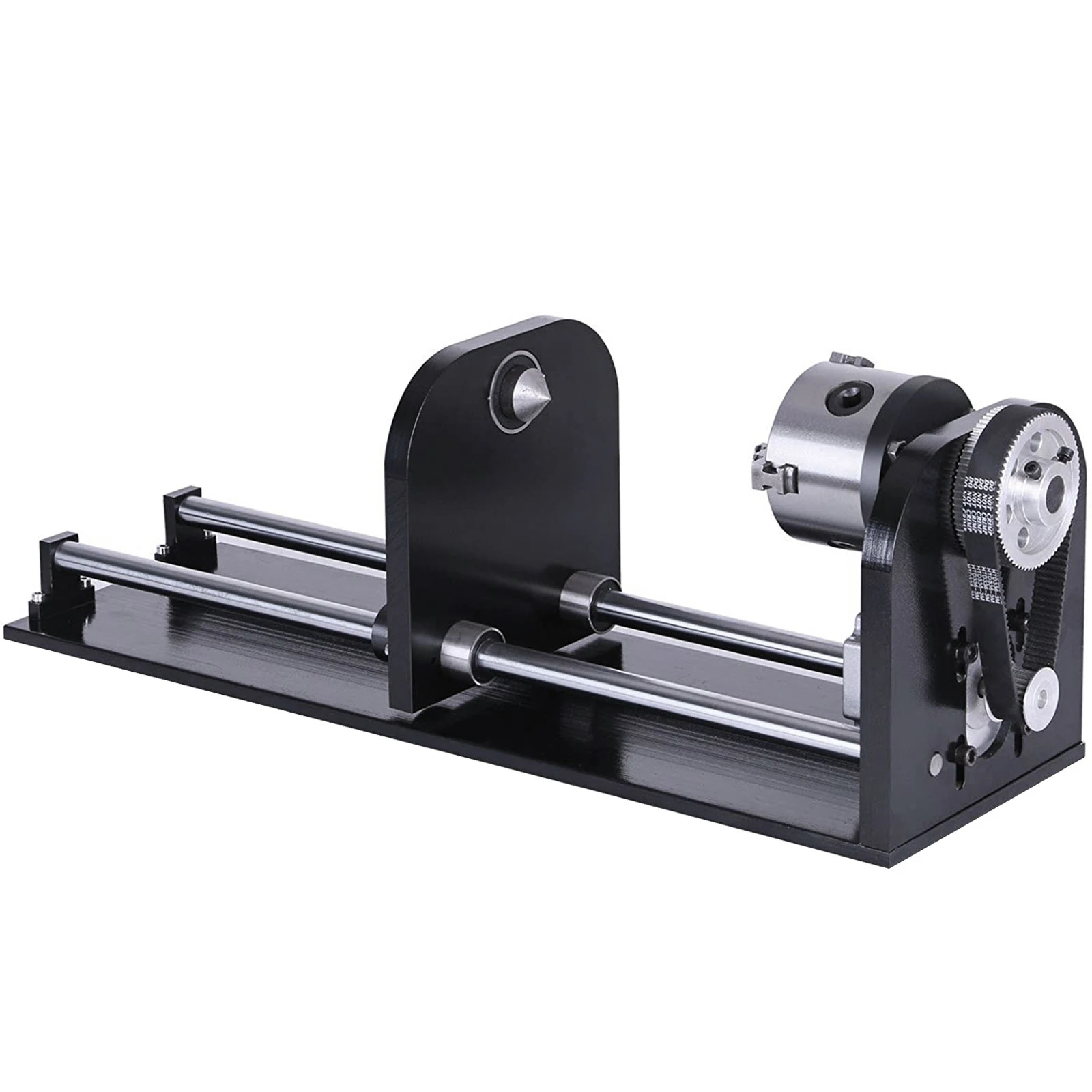

CNC Rotational Rotary Axis

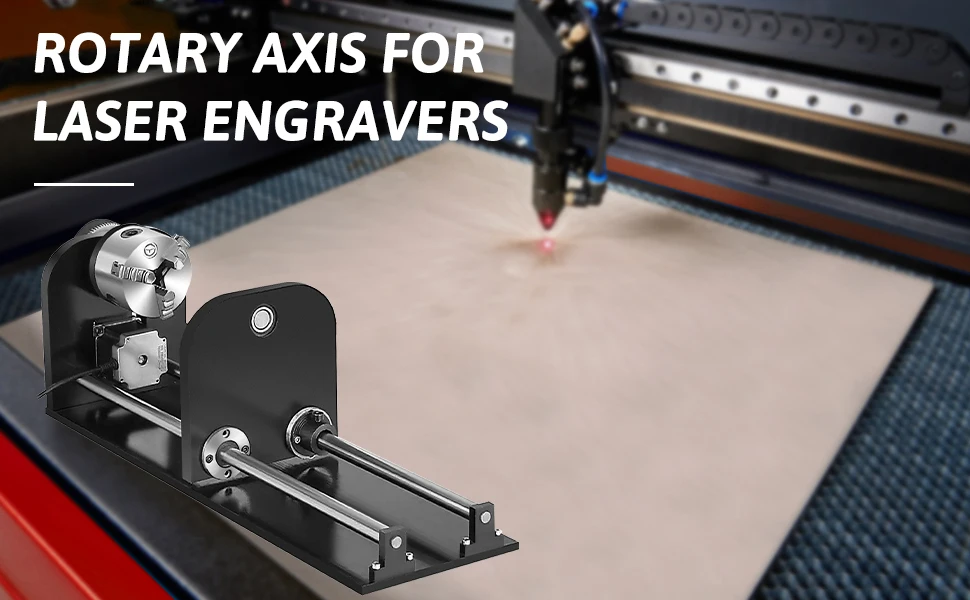

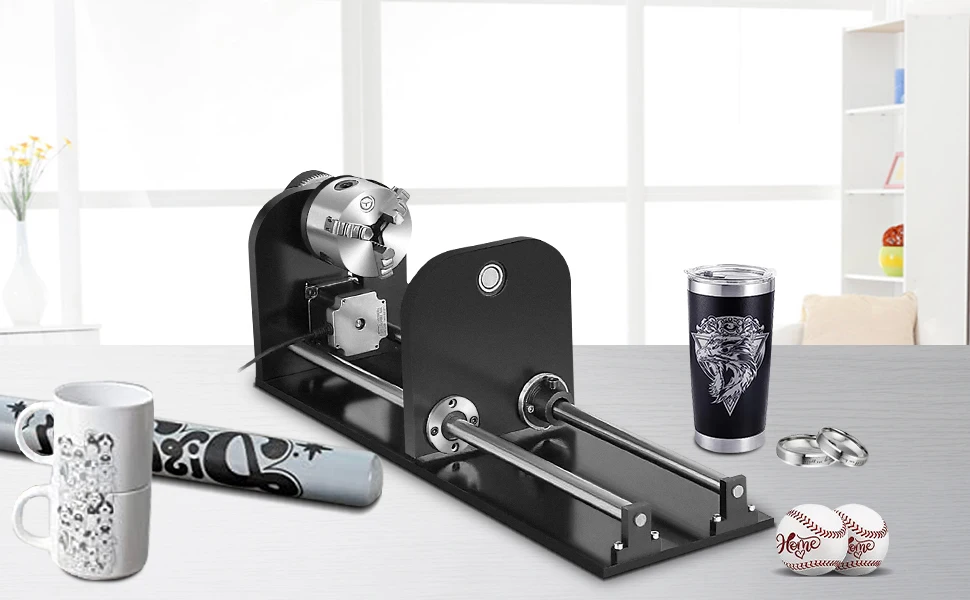

We offer you a superior rotational rotary axis with 80mm 3-jaw scroll chuck. Because of the rotary movement of the fourth rotary axis, it is available for the stereoscopic process for a cylindrical, curved, round, etc. The four-axis engraving machine is widely used in the scroll, stigma, bamboo, and so on so like.

Product parameters
Excellent Motor
Accurate Chuck
Precise Tail

Tough Equipment & Tools, Pay Less

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Key Features

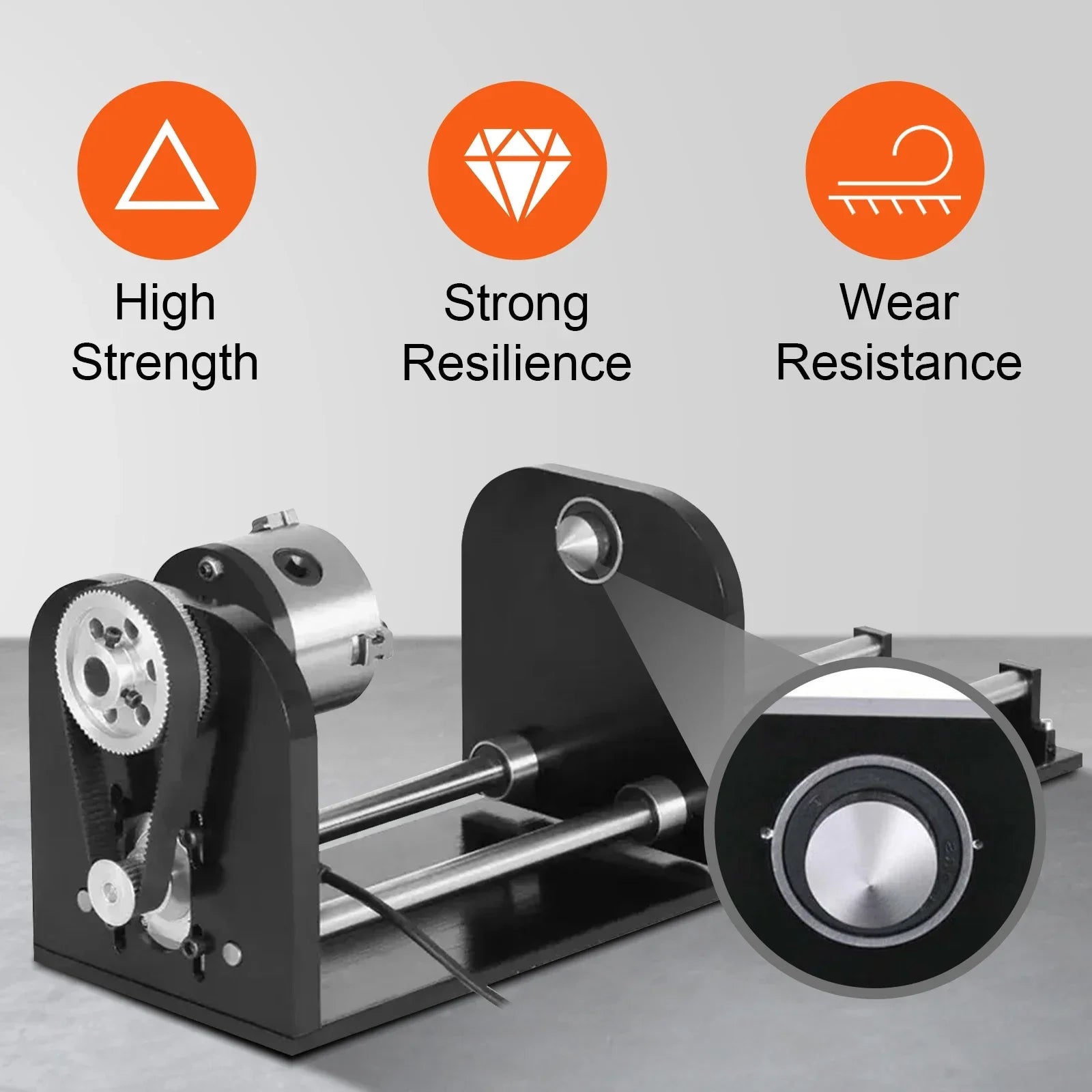

Extraordinary Quality

The all-metal body has a particular strength, toughness, and wear resistance. At the same time, it is not easy to rust after special processing.

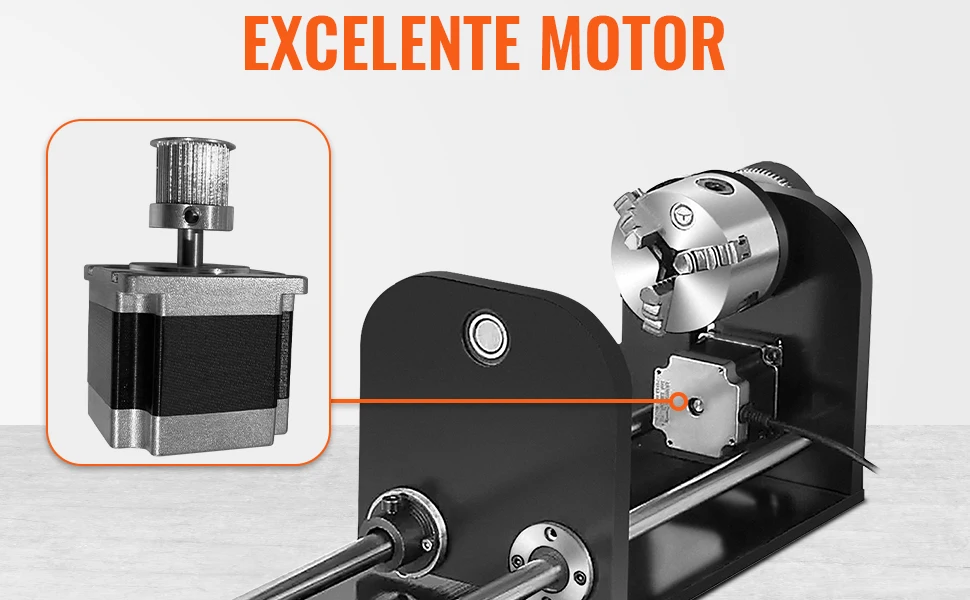

Strong Stepper Motor

The rotary axis and tailstock adopt a two-phase stepper motor with a high conversion rate, stable control, and precise positioning.

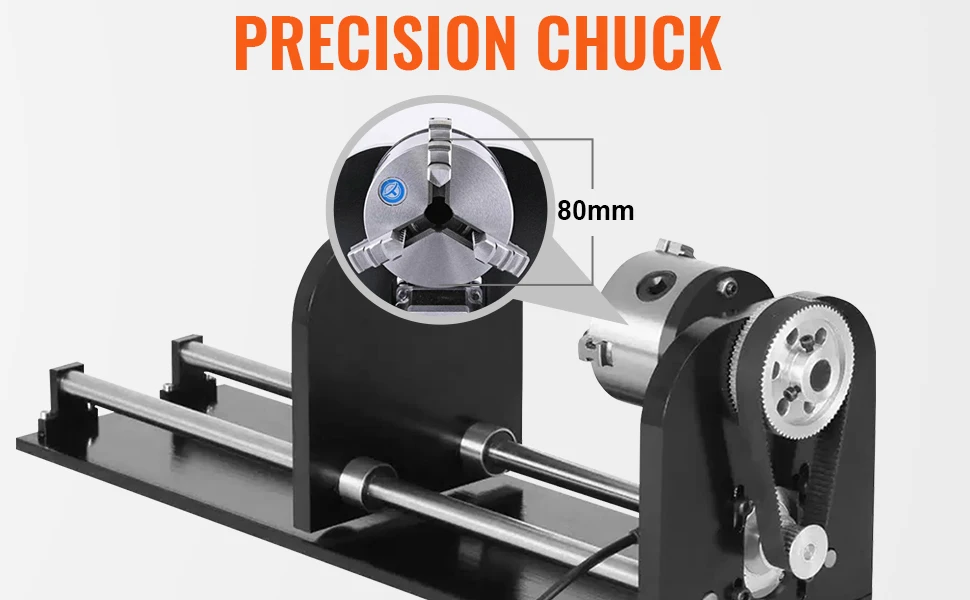

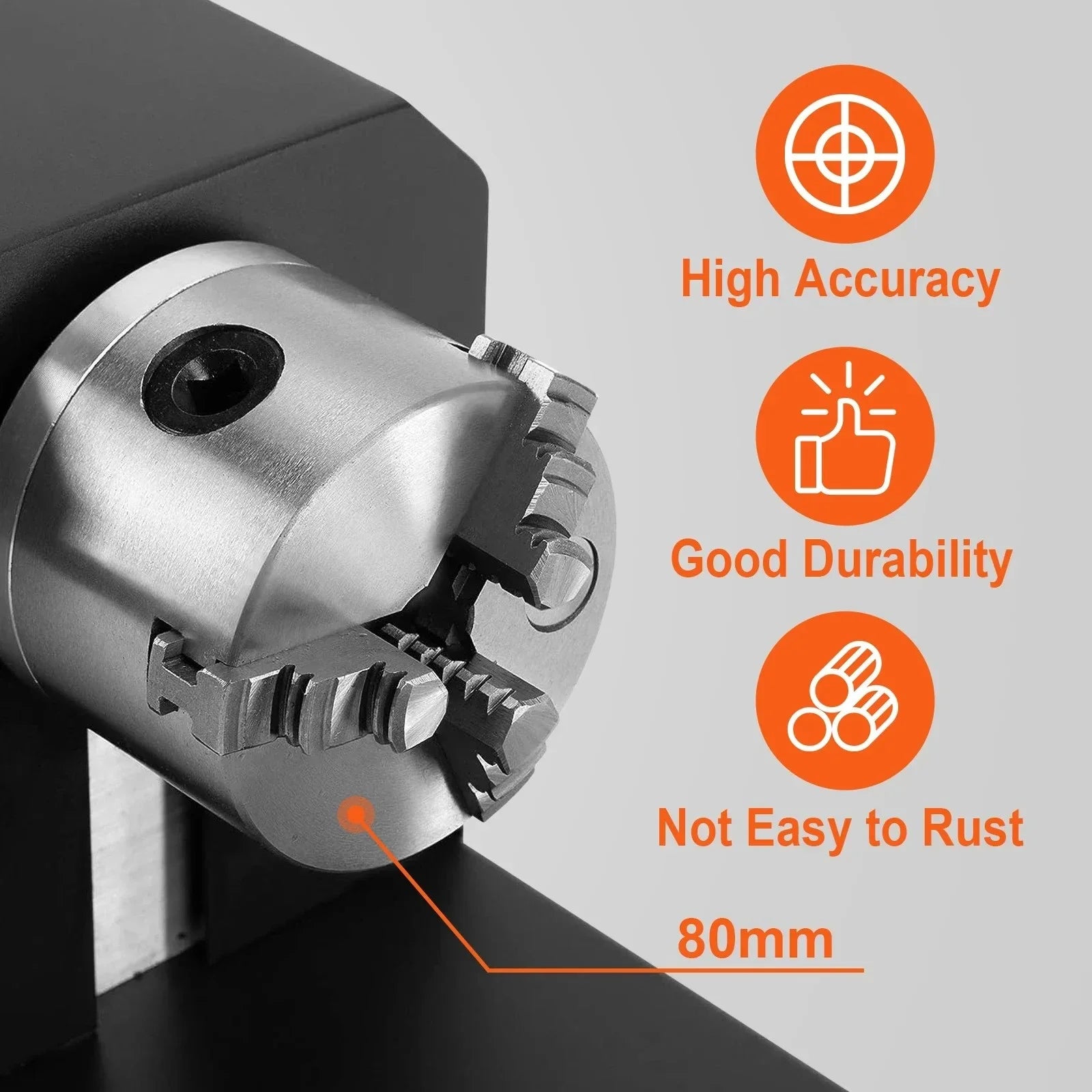

Precision Chuck

80mm chuck with high precision provides better precise positioning and good concentricity, suitable for clamping various types of materials, high compatibility.

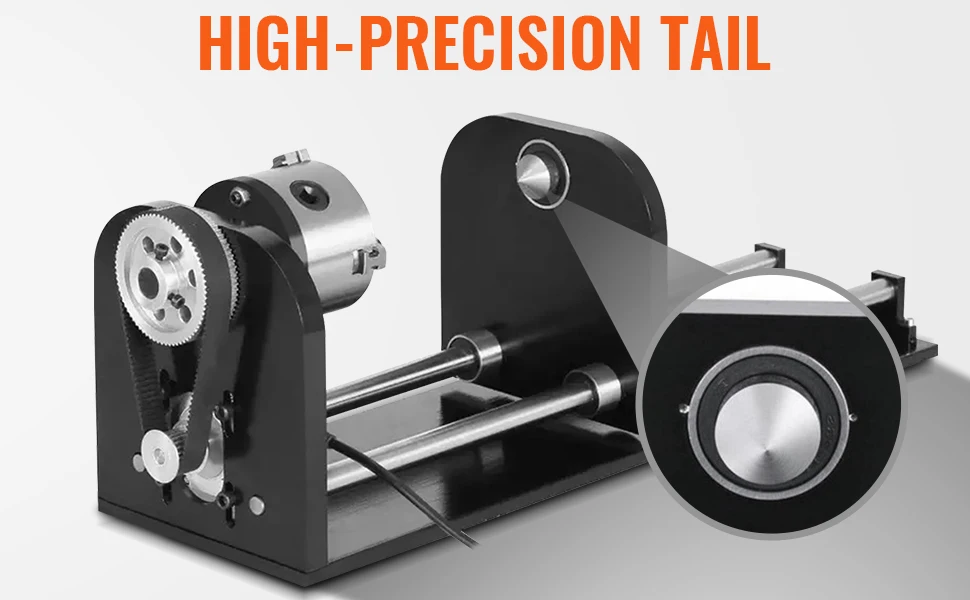

High-precision Tail

High-quality high-precision tail top with better adaptability can adjust the length of the thimble according to actual needs.

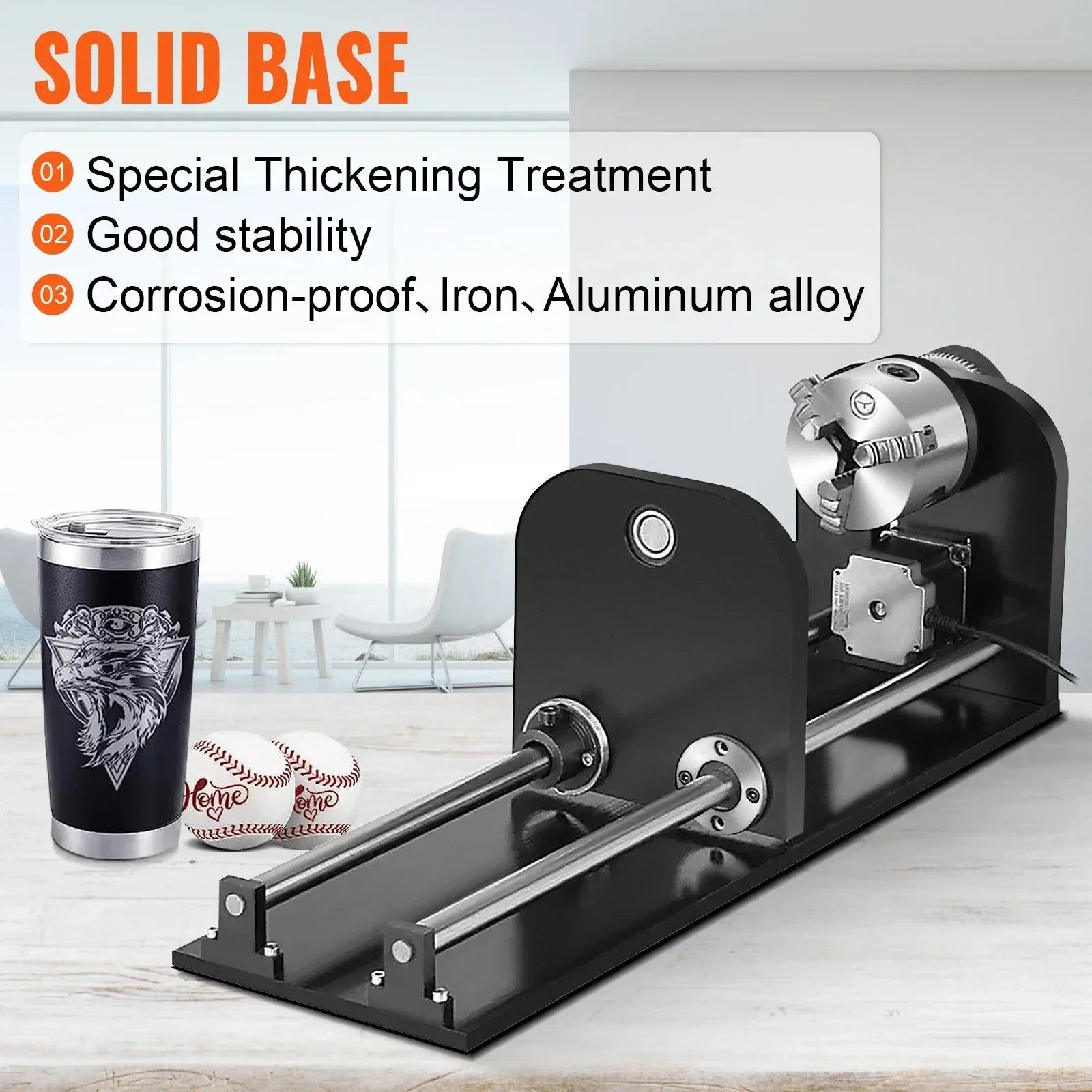

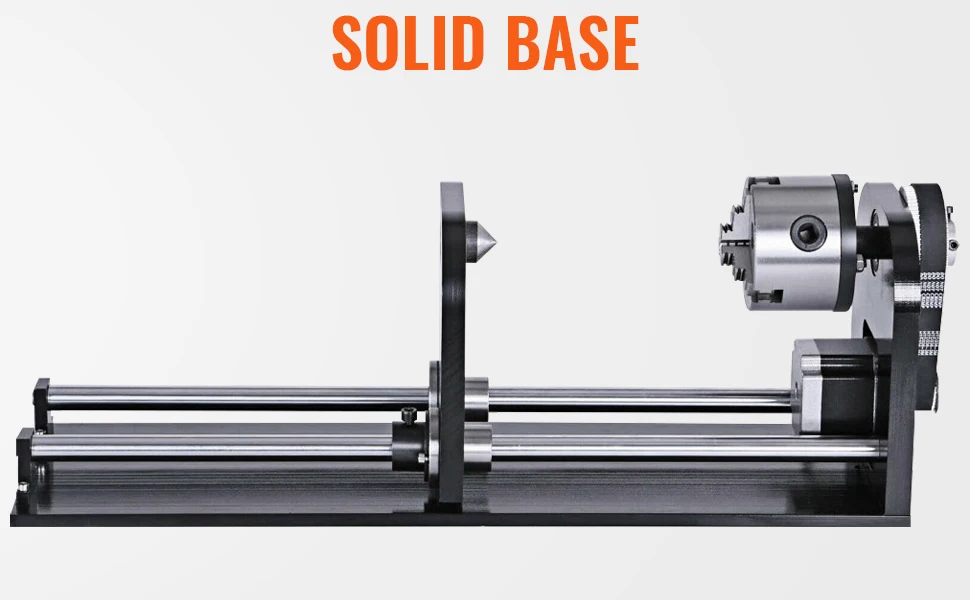

Solid Base

The base of the machine is made of sturdy material and has been thickened to ensure its stability during operation.

Wide Application

The four-axis engraving machine is widely used in the scroll, stigma, bamboo and also can be applied in cylindrical, curved, round, etc.

Specifications

Rated Voltage:2.07v Dc
Phase Resistance (20℃) 1.38×(1±15%)ω/Phase
The Maximum Statictorque:≥780mn.M
Swing( Shaft To See ):A-Ab-B-Clockwise Direction
Maximum No-Load Running Frequency:≥2500pps
Electrical Strength:Ac600v/1ma/1s
Rotor Inertia:220g.㎡
Step Angle:1.8°±0.09°
Rated Current:Dc 1a/Phase
Inductance (1khz):30×(1±20%)Mh/Phase
Detent Rorque:320g.Cm Ref.
Maximum No-Loadstart Frequency:≥1500 Pps
Insulation Resistance:≥100mω(Dc 500v)
Insulation Grade:B
Quality 0.8kg Ref.
Material Of Pulley:H62
Tooth Form:Mxl
Number Of Teeth Z=20
Pitch Of Teeth P=2.032
Pitch Circle:φ12.936
Outer Circle:φ12.428±0.003
Product Dimensions: 152 × 4500 ×178 (H/L/W Mm)

Package Content

1 x Rotary Axis
